Configure your power

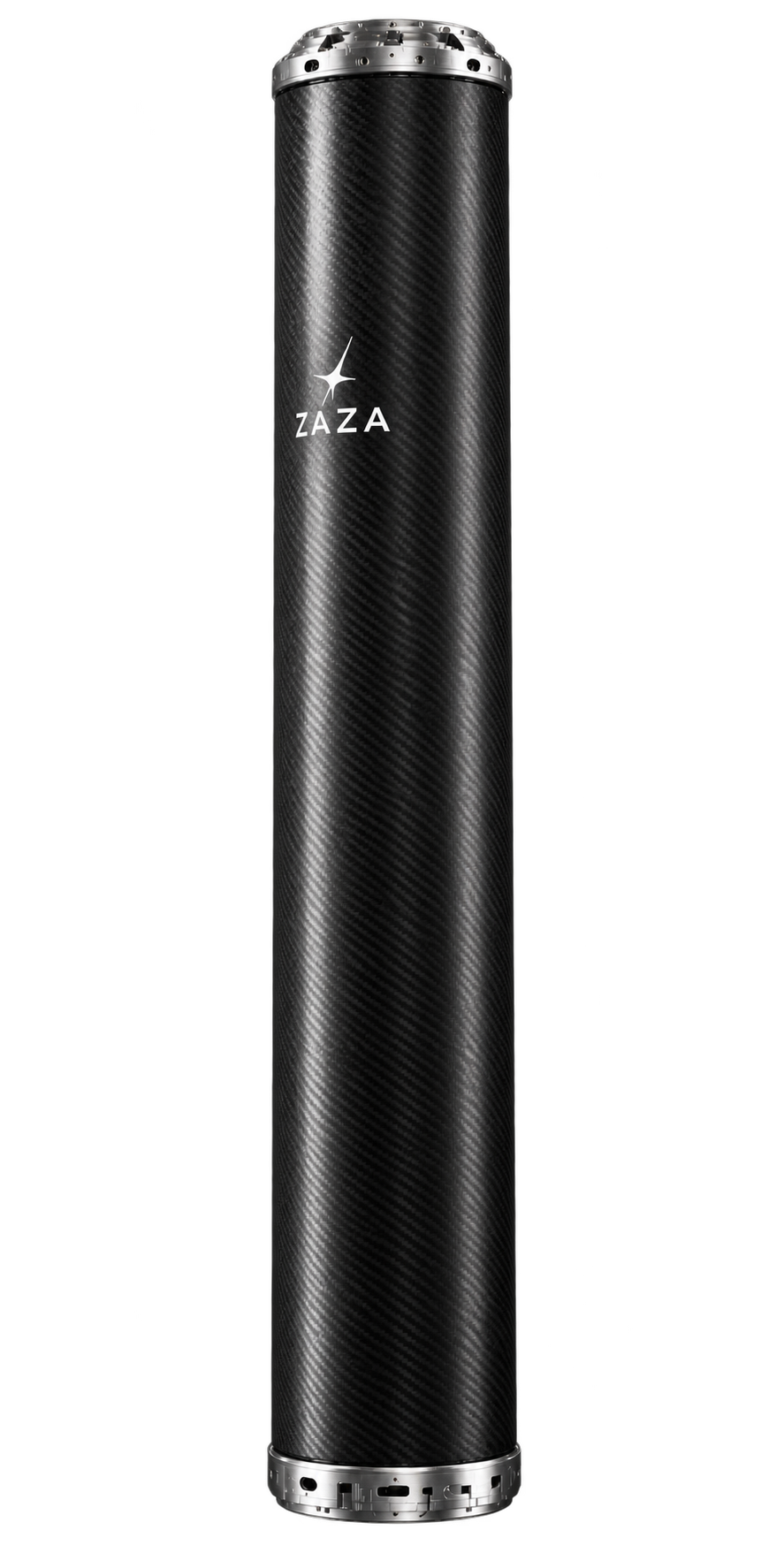

ZAZA CELL closed carbon-fiber exterior with stainless-steel collars
YOUR DEPLOYMENT100 kW
1CELL
1Array
Loading your deployment
Drag to look around · Select equipment
Site connections

Select a CELL or connection to inspect.

5 ft²Equipment footprint166 US gal/dayWater recovery estimate
1 CELL · 100 kW
Scene details

CELL 100: 4.572 m tall × 0.6096 m diameter.

Illustrative surroundings and service layout. Photographic ground projection is not a surveyed site model.

ZAZA / CELL 100

CELL

100 kW Zero Emission Portable Generator

PEM fuel-cell generator with 100 kW gross output and an 800 V nominal DC interface. Includes liquid-hydrogen storage, power electronics and controls.

7-month lead time

Specifications & site connections
Gross power
100 kW
Electrical output
800 V DC nominal
Fuel / tank
LH₂ / 23.3 kg
Diameter × height
24 in × 15 ft
Cooling
Site liquid-cooling loop
Refill service
10 years, optional

Includes the PEM system, Dewar tank, hydrogen conditioning, power electronics and controls. Site electrical, air, cooling and vent connections are required. AC loads require site power conversion.

2.4 MWh gross per 24 hours at continuous 100 kW with refill. Usable site output accounts for conversion and facility loads.

200 CELLs · 20 MW

Output per CELL
$500,000 per CELL100 kW total

CELL 100 specifications and geometry shown.

Ownership & service

Refill purchased separately.

10-year PPA19¢/kWh7-month minimum lead

Review your order and pay your issued deposit in checkout.

CELL 100 / OPERATION

From hydrogen to power.

100 kW is gross stack output. Contracted power is measured at the agreed delivery point.

How CELL Works

Liquid hydrogen.
Electrical power.

Follow hydrogen through storage, conditioning and the PEM reaction.

What happens here
    Scroll to follow the energy.
    ZAZA CELL exterior rendering
    HydrogenElectricityHeat
    100 kW PEM FUEL CELL SYSTEM
    Drag to rotate · Scroll to explore
    Technical details
    CELL ARCHITECTURE

    One integrated module.

    Storage, hydrogen conditioning, PEM stack, power electronics and interfaces.

    Gross stack output
    100 kW
    LH₂ inventory
    23.3 kg
    Outside diameter
    24 in / 610 mm

    Internal connections and the enlarged PEM reaction are illustrated.

    SUPPLY NETWORKLH₂ / ROAD TRANSPORT

    Fuel logistics.

    Full refill service, included in your PPA.

    IO / SOURCESouth PadreBrazos Santiago Pass
    8h 15m / ONE WAYHYDROGEN TRANSPORT
    CELL / SITEAbileneData center power
    10Truck & trailer sets9 operating, 1 spare
    2h 20mBetween deliveriesAlternating full and partial loads
    10.3Average dispatches / day~72 per week
    6,990kgNetwork LH₂ inventory23.3 kg per CELL
    DELIVERY CADENCE36,000 kg H₂ / day
    4,536 kg full load2,454 kg partial load
    Select a delivery to view its time and payload.
    Delivery schedule

    300-CELL logistics case: 36,000 kg/day demand, 6,990 kg network inventory, and alternating 4,536 kg / 2,454 kg loads. The schedule continues across midnight; dispatch totals are averages.

    Travel time excludes loading, unloading and driver scheduling.
